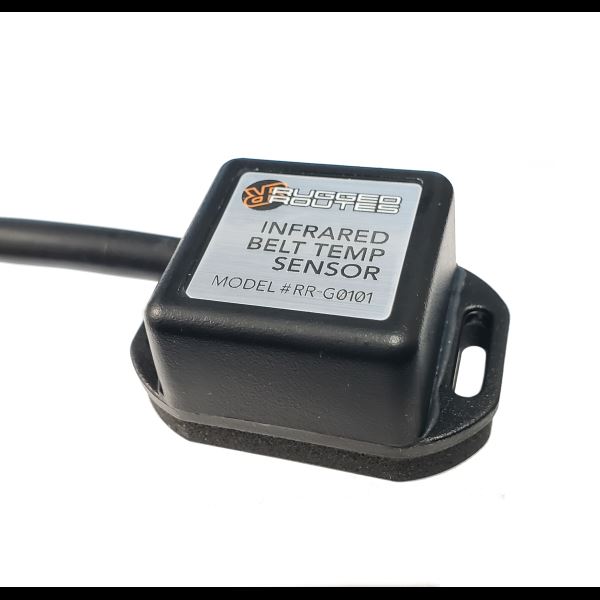

This infrared belt temp sensor is an easy install accessory for Lowrance HDS and Elite Ti GPS Units.
It simply connects to the N2K network just like a Point-1 Baja Antenna and displays your CVT belt temp right on the Lowrance GPS screen. Keep an eye on your belt temp in order to adjust your driving style or as an aid in clutch tuning for prolonging the life of your CVT Belt.
Simply drill a 3/8-1/2-inch hole in the plastic belt cover above the center of your belt and stick on the sensor with the lens centered over the hole. The sensor contours to the belt cover with a 3/16-inch thick waterproof closed cell foam and easily sticks on with a high strength waterproof adhesive by 3M.
Install on a clean plastic surface and hold down for 30 seconds. Wait 24 hours to fully adhere.
Compatible with Gen2 or newer HDS units and Elite Ti 7-inch or larger. Not compatible with Elite-5 Ti.
The kit includes the sensor only. The NMEA 2000 connectors or extension cables are not included.
