Textron Off Road Wildcat XX Delivers Unbeatable Ride Experience

February 2018 Feature

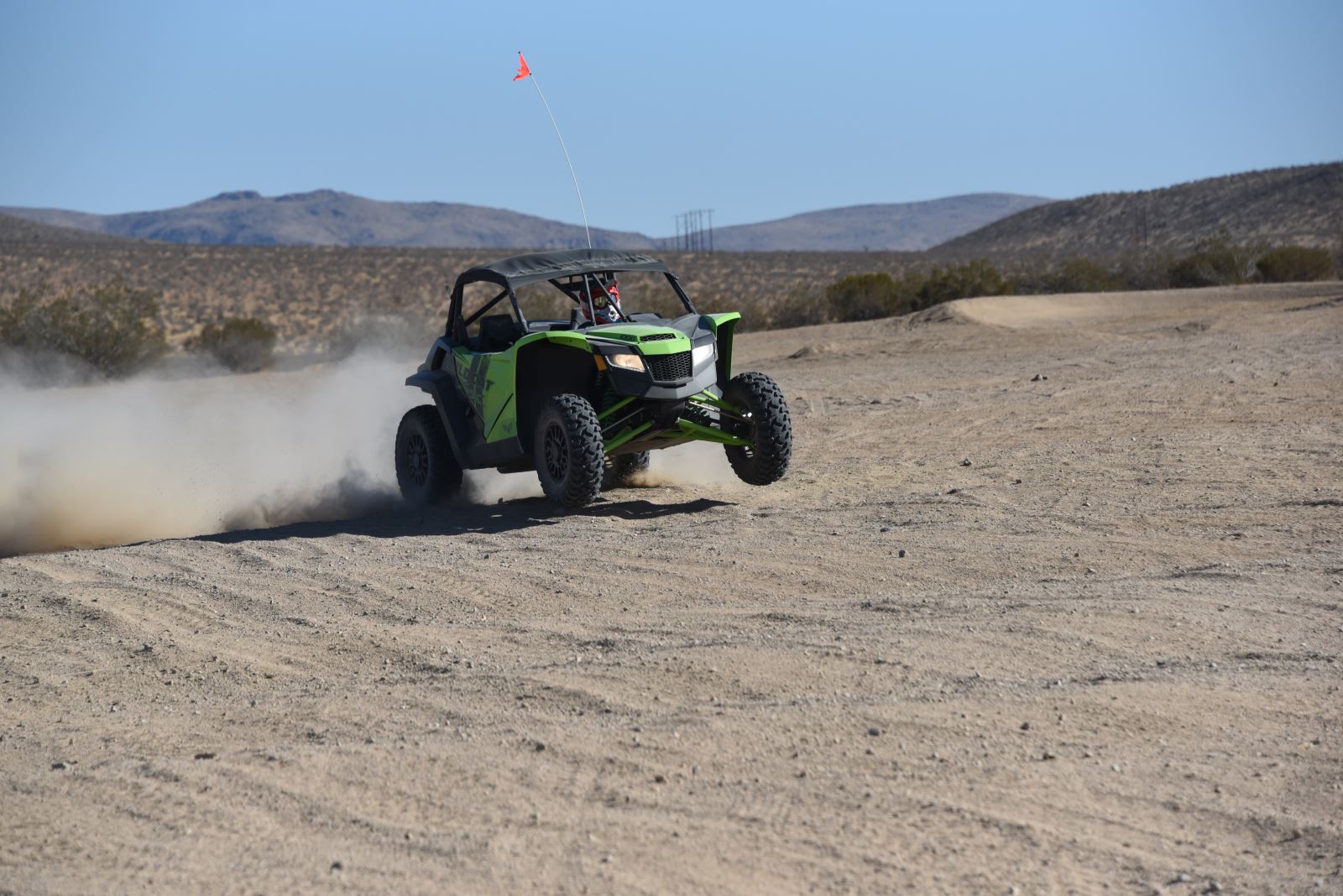

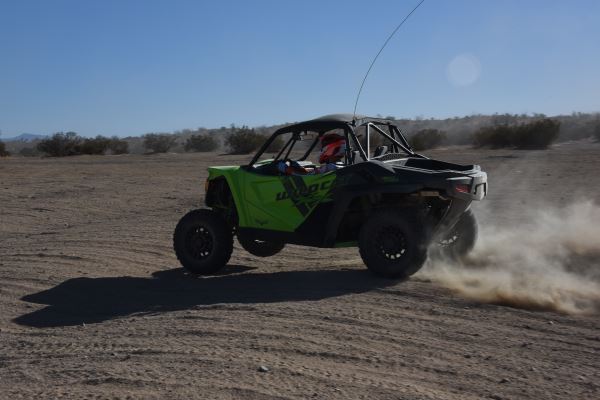

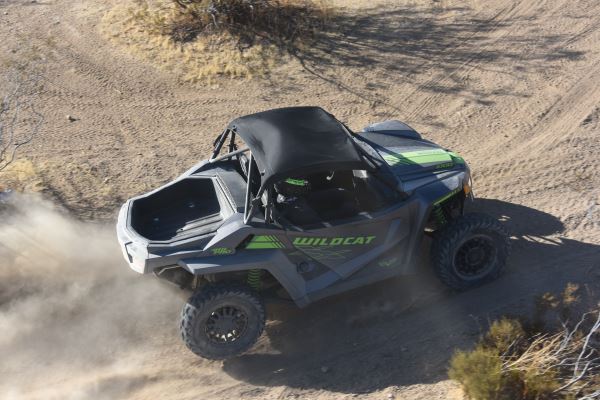

Augusta, GA — Textron Specialized Vehicles Inc., a Textron company, and its Textron Off Road brand have off-roaders’ hearts racing with the much-anticipated Wildcat XX, a new high-performance side-by-side designed to deliver an unbeatable ride experience.

<

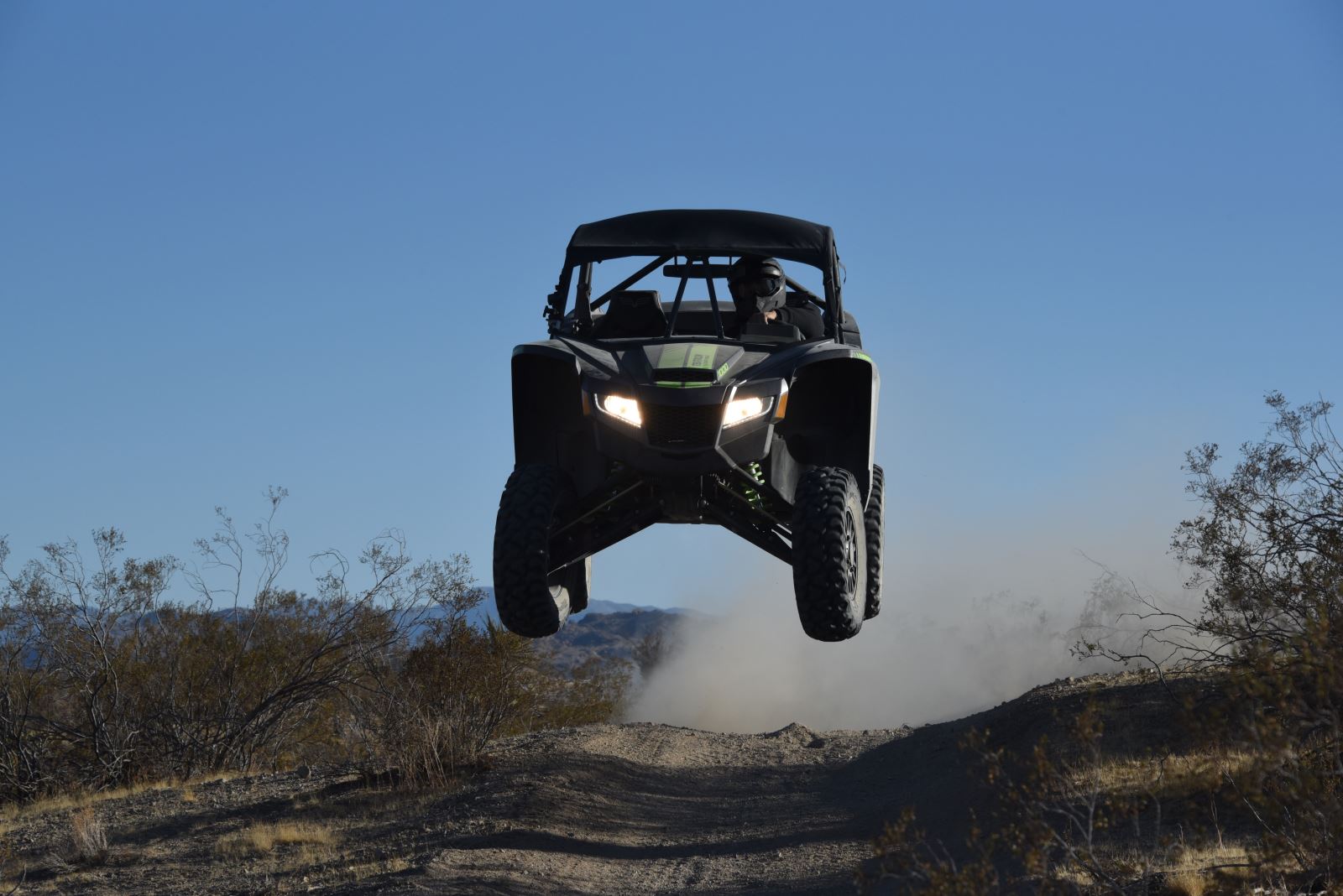

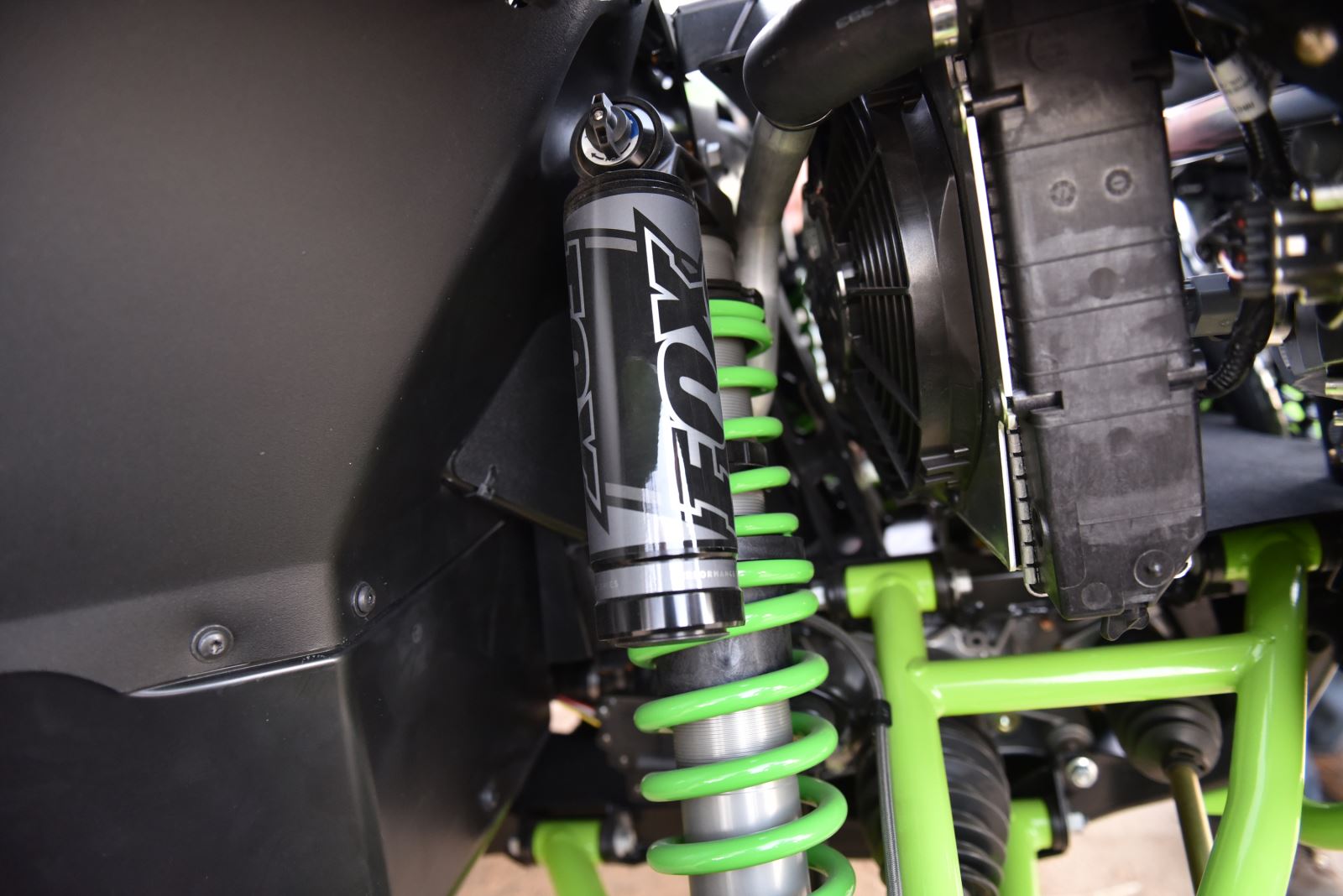

Designed in collaboration with off-road racing legend Robby Gordon, the Wildcat XX is built for a superior ride in every aspect. The off-road racing-inspired suspension system delivers best-in-class handling with more than 18 inches of travel in the front and rear. The Fox 2.5 Podium QS3 Shocks with Bottom-Out Control are precision-tuned at the factory with the flexibility to absorb and smooth out the most challenging rides.

<

<

An all-new Team front gear case and rear transaxle provide 2WD/4WD and 4WD lock functionality for rock-crawling capability and exceptional flexibility in different terrains. Making it all go is a 125 hp, 998cc three-cylinder EFI engine—the highest horsepower aspirated engine in its class.

<

“Wildcat XX was inspired by the most extreme off-road racing vehicles, and is built to outperform the biggest side-by-side names in off-roading,” John Collins, vice president, Consumer for Textron Specialized Vehicles, said. “We like to say that Wildcat XX puts ride over everything. With Wildcat XX, you get an unbeatable ride and ultimately, a side-by-side that will conquer any rock, rut or ravine.”

<

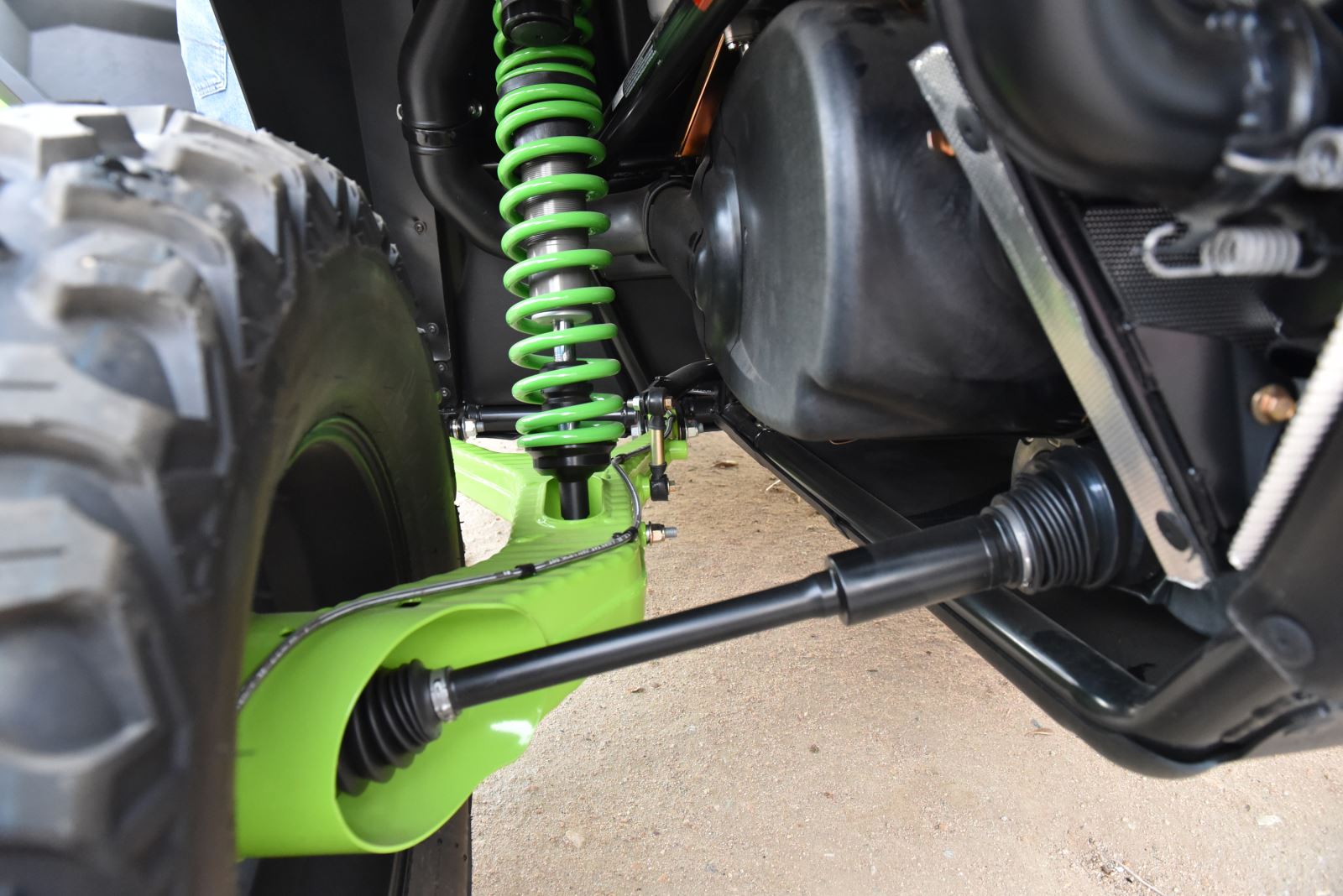

The Wildcat XX front suspension features unequal-length A-arms that angle the tire into every turn, grabbing more of the ground to better negotiate even the toughest hairpin turns. Backing it up is a rear trailing arm that might look familiar to hardcore truck and class one buggy racers, who provided the inspiration to link the arm to the front, but not the sides. This keeps the wheels moving up and down—not side to side as with competitive vehicles. The side to side motion—called track width change—pushes other machines off course, requiring constant steering corrections and reducing stability. The Wildcat XX trailing arm results in 80 percent less track width change in the rear for a smoother ride.

<

<

To further enhance the owner experience, Textron Specialized Vehicles designed the Wildcat XX with durability and serviceability at the forefront. With a race-inspired cage and tough components like double-shear joints, a forged aluminum front knuckle and HSLA tubing throughout, Wildcat XX is built to take the most extreme punishment. In addition, the engine is top-mounted to avoid taking a beating during bottom outs. When service is required, the Wildcat XX front steel clip and rear bottom skid are easily removable, and the cargo box is removable without any tools required. So, you get easy access to the powertrain, transaxle, engine and front gear case.

<

Wildcat XX offers a driver-first design for the ultimate in comfort and convenience. Key features include the largest cab in the industry, ergonomic seating and an automotive style interior.

<

Other key Wildcat XX features:

<
  • Standard 65-amp alternator to power accessories
  • Integrated wiring system cuts light bar installation time in half
  • Standard Electronic Power Steering (EPS)
  • Class-leading 300-lb capacity cargo box that fits up to a 32-inch spare tire
  • Class-leading four-gallon glove box to protect gear in the cab
  • Two packages and more than 30 purpose-built accessories from Textron Off Road
  • 14-inch ground clearance

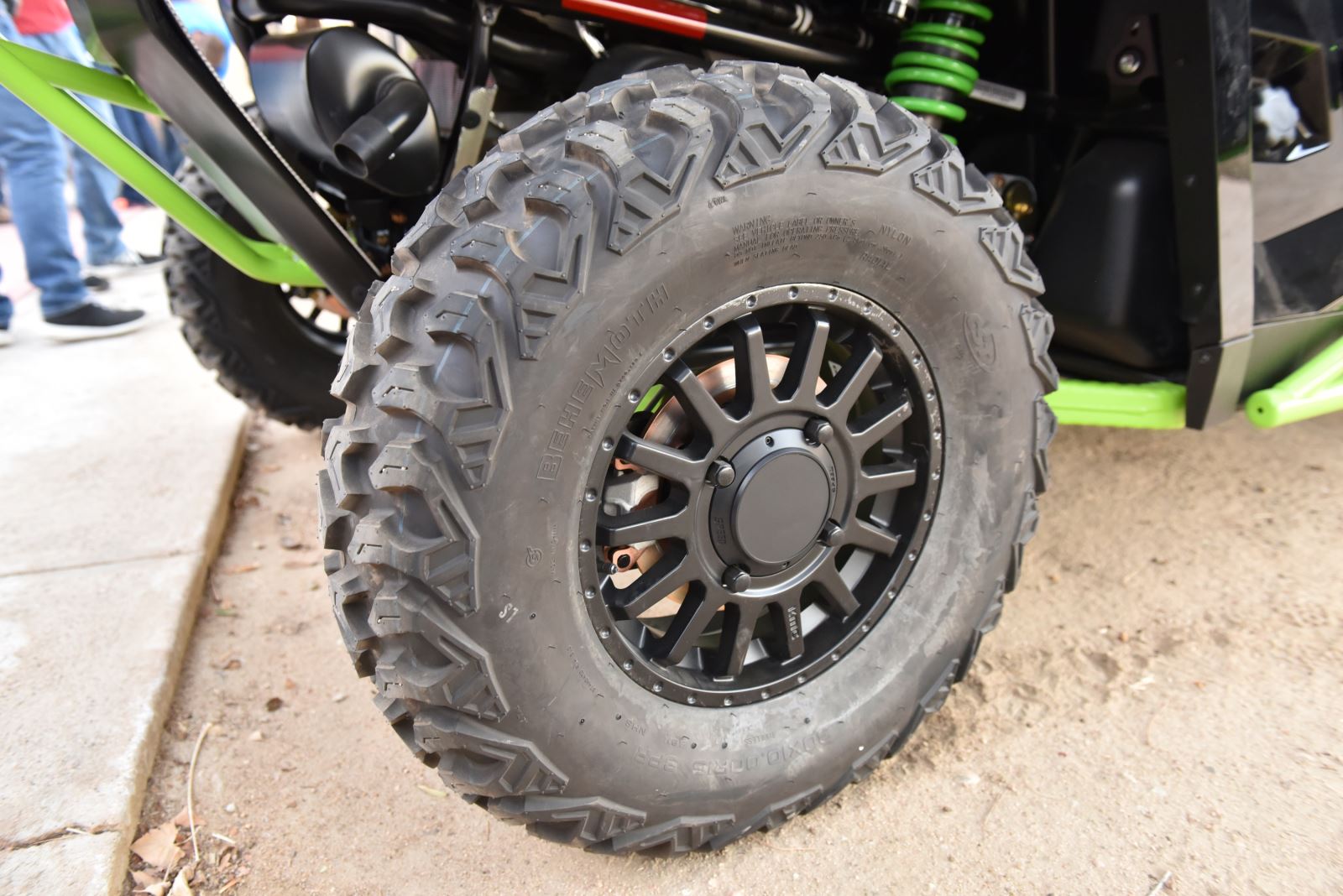

  • 15-inch custom KMC wheels and 30-inch CST Behemoth tires

<

Available in Lime Green, Satin Charcoal Metallic or a limited edition Horizon Blue. Wildcat XX is covered by a six-month warranty.

<

For more information, visit a local Textron Off Road dealer, go to TextronOffRoad.com or join the conversation on Textron Off Road’s Facebook, Twitter, YouTube and Instagram accounts.

<

Wildcat XX

<

ENGINE & DRIVETRAIN

<

BATTERY

<

Single 12V Starter

<

ENGINE TYPE

<

Liquid-Cooled, 4-Stroke Inline Triple Cylinder Dual Overhead Cam, Gas Engine

<

HORSEPOWER

<

125

<

DISPLACEMENT

<

998cc

<

DRIVETRAIN

<

CVT

<

DRIVE SYSTEM

<

Electric 2/4WD with 4WD Lock

<

FUEL SYSTEM

<

Electronic Fuel Injection

<

GEAR SELECTION

<

Team Rapid Response Clutches (H,L,N,R,P)

<

FRONT DIFFERENTIAL

<

Front Locking Differential with Electrical Actuator

<

REAR DIFFERENTIAL

<

Rear Transaxle

<

PERFORMANCE

<

TOTAL CAPACITY

<

730 lb (331.1 kg)

<

BED LOAD CAPACITY

<

300 lb (136.1 kg)

<

STEERING & SUSPENSION

<

STEERING

<

Rack & Pinion w/ Electronic Power Steering, Tilt Steering Wheel with Sport Design

<

FRONT SUSPENSION

<

Double A-arm with 18 in (45.7 cm) Travel

<

REAR SUSPENSION

<

Trailing Arm with 18 in (45.7 cm) Travel

<

SHOCK ABSORBERS

<

Fox 2.5 Podium QS3 with Compression Adjustment (Front) Fox 2.5 Podium QS3 with Compression Adjustment and Bottom-Out Control (Rear)

<

BRAKE SYSTEM

<

Dual Piston Front Calipers and Single Piston Rear Calipers

<

PARKING BRAKE

<

Park in Transmission

<

TIRES

<

30 x 10 x 15 in CST Behemoth Tires (Front & Rear)

<

WHEELS

<

15 in Aluminum KMC Wheels

<

ELECTRICAL

<

ALTERNATOR (ELECTRICAL CHARGING SYSTEM)

<

470 Watt Stator and 65 Amp Alternator

<

ACCESSORY CONNECTION SYSTEM

<

Pre-Wired Connections for up to 8 Accessories (4 Switch & 4 Key-On)

<

DIMENSIONS

<

OVERALL LENGTH

<

136 in (345.4 cm)

<

OVERALL WIDTH

<

64 in (162.6 cm)

<

OVERALL HEIGHT

<

67.5 in (171.5 cm) (w/o Roof) | 68 in (172.7 cm) (w/ Roof)

<

OVERALL WEIGHT

<

1,816 lb (823.7 kg) (Dry) | 1,868 lb (847.3 kg) (Curb)

<

WHEELBASE

<

95 in (241.3 cm)

<

FUEL CAPACITY

<

10 gal (37.9 L)

<

GROUND CLEARANCE

<

14 in (34.3 cm)

<

GLOVE BOX CAPACITY

<

4 gal (15.1 L)

<

BED DIMENSIONS (L X W X H)

<

34 x 32 x 9 in (86.4 x 81.3 x 22.9 cm)

<

COLOR OPTIONS & FRAME

<

FRAME

<

Structurally Welded High Strength Steel

<

STANDARD COLORS

<

Lime Green, Satin Charcoal Metallic

<

OPTIONAL COLOR*

<

Horizon Blue

<

FEATURES

<

INSTRUMENTATION

<

Dual Screen LCD Gauge with Seatbelt Indicator, High Beam Indicator, Oil Pressure Indicator, Coolant Temp. Warning Light, Check Engine Light, Engine Hour Meter, Odometer & Trip Meter, Clock, Gear Position, Diagnostics

<

LIGHTING

<

Low/High Beam Halogen Headlights with LED Accent

<

SEATING

<

Stitched, Two-Tone, Contoured Bucket Seats

<

STORAGE COMPONENTS

<

Cargo Bed, Glove Box, Cup Holders (2)

<

SAFETY

<

3-Point Seat Belts (4-Point and Click-6 Ready), Seat Belt Rev Limiter, Standard Full Doors, Race-Inspired ROPS with Front and Rear Intrusion Bars, 2 Passenger Grab Handles, Headlights, Brake Lights

<

WARRANTY

<

WARRANTY

<

6 months

<
