2017 Kawasaki KFX ATV Model Range

May 2016 Powersport News

Everyone is looking for the fun of riding and the Kawasaki KFX ATV family offers two entry-level models for novices.

The KFX ATV has a number of features aimed at helping riders gain ATV riding experience at lower speeds. These ATVs are a great way for new riders to gain riding experience and offer the introductory step into a lifetime of fun in the powersports industry.

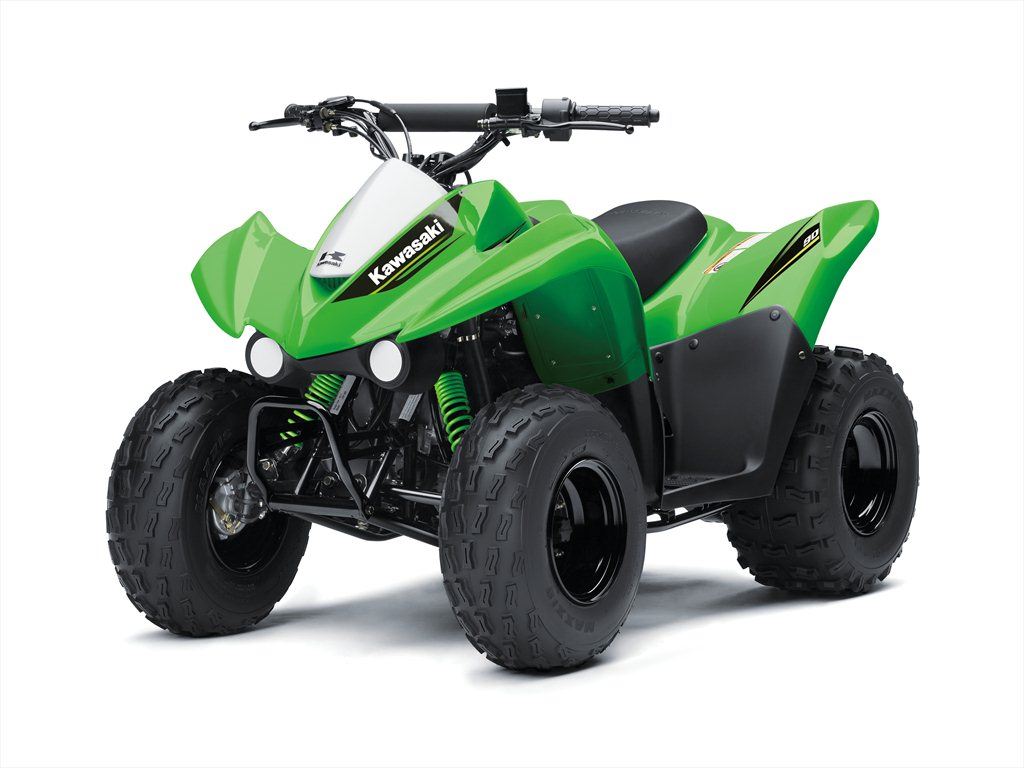

Kawasaki KFX 90

Featuring an air-cooled 89cc single-cylinder, 4-stroke engine, the KFX 90 gives budding riders the ability to grow into the KFX ATV family.

Special  controls include a keyed ignition to help address unsupervised starting as well as speed controls including a throttle-limiting screw to restrict throttle movement and a collar in the CVT transmission that can be easily removed to increase speed as the rider gains experience, allowing the KFX 90 to grow with the rider.

With a convenient electric starter, the KFX 90 ATV is easy to start while also having a kickstarter available as a back up. It features a wide stance for greater stability and handling, as well as two front drum brakes and a rear disc brake, which are both activated by handlebar-mounted brake levers. The KFX 90 also has full floorboards for secure foot placement, as well as a tail light to help other riders spot the vehicle when it is in use.

Color: Lime Green

MSRP: $2,599

Availability: Now

Kawasaki KFX 50

The KFX 50 ATV is the starting place for many first-time ATV riders. Featuring a 49.5cc, air-cooled, single-cylinder, 4-stroke engine that delivers smooth power, predictable performance and rock-solid reliability, it packs a lot of fun into a small package.

The KFX 50 has all the features you need on a mini ATV, including an electric start, a smooth CVT transmission that allows engine braking, two front drum brakes and a rear disc brake, which are activated by handlebar-mounted brake levers. It also features special controls including keyed ignition, a throttle screw and a CVT collar to help provide more control over vehicle usage and performance.

The KFX 50 is a fun, predictable vehicle designed with new riders in mind. With its sporty ATV looks including the distinctive Lime Green color scheme, full floorboards and a wide, stable stance, the KFX 50 makes for a great introduction into riding.

Like all Kawasaki ATVs, it comes with a 12-month limited factory warranty, which can be extended by up to another 48 months with the optional Kawasaki Protection Plus Plan.

Color: Lime Green

MSRP: $1,999

Availability: Now

2017 Specifications

KFX 90



Engine

4-stroke, forced-air cooled, single

Displacement

89cc

Bore x Stroke

47.0x51.8mm

Compression Ratio

10.0:1

Fuel System

Mikuni PTE 16

Ignition

Solid state CDI

Transmission

Continuously Variable Automatic

Final Drive

Chain

Maximum Torque

N/A

Front Suspension/Wheel Travel

Single A-arm with twin shock absorbers/2.8 in

Rear Suspension/Wheel Travel

Swingarm with single shock absorber/2.9 in

Front Tire

AT 18 x 7-8 tubeless

Rear Tire

AT 18 x 9-8 tubeless

Front Brakes

Dual mechanical drums

Rear Brakes

Hydraulic discs

Ground Clearance

At rear axle - 3.9 in

Starting System

Electric with back-up kick-starter

Fuel Capacity

1.5 gal

Turning Radius

8.7 ft

Towing Capacity

N/A

Total Rack Capacity

N/A

Rack Capacity, Front/Rear

N/A

Lighting

N/A

Frame Type

Double cradle, steel

Track Front/Rear

26.8/26.0 in

Overall Length

56.1 in

Overall Width

35.6 in

Overall Height

36.4 in

Seat Height

25.6 in

Curb Weight*

266.8 lb

Wheelbase

38.0 in

Instruments

N/A

Color Choices

Lime Green

Warranty

12 Month Limited Warranty

Kawasaki Protection Plus (optional)

12, 24, 36, or 48 months



KFX 50



Engine

4-stroke, air-cooled, single

Displacement

49.5cc

Bore x Stroke

39x41.4mm

Compression Ratio

10.0:1

Fuel System

Keihin PTE 16

Ignition

Solid state CDI

Transmission

Continuously Variable Automatic

Final Drive

Chain

Maximum Torque

N/A

Front Suspension/Wheel Travel

Single A-arm with twin shock absorbers/2.8 in

Rear Suspension/Wheel Travel

Swingarm with single shock absorber/2.9 in

Front Tire

AT 16 x 8-7 tubeless

Rear Tire

AT 16 x 8-7 tubeless

Front Brakes

Dual mechanical drums

Rear Brakes

Hydraulic discs

Ground Clearance

At rear axle - 3.3 in

Starting System

Electric with back-up kick-starter

Fuel Capacity

1.5 gal

Turning Radius

8.7 ft

Towing Capacity

N/A

Total Rack Capacity

N/A

Rack Capacity, Front/Rear

N/A

Lighting

N/A

Frame Type

Double cradle, steel

Track Front/Rear

27.2/27.6 in

Overall Length

55.1 in

Overall Width

34.7 in

Overall Height

35.8 in

Seat Height

25.0 in

Curb Weight*

245.0 lb

Wheelbase

38.0 in

Instruments

N/A

Color Choices

Lime Green

Warranty

12 Month Limited Warranty

Kawasaki Protection Plus™ (optional)

12, 24, 36, or 48 months

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
