Specifications

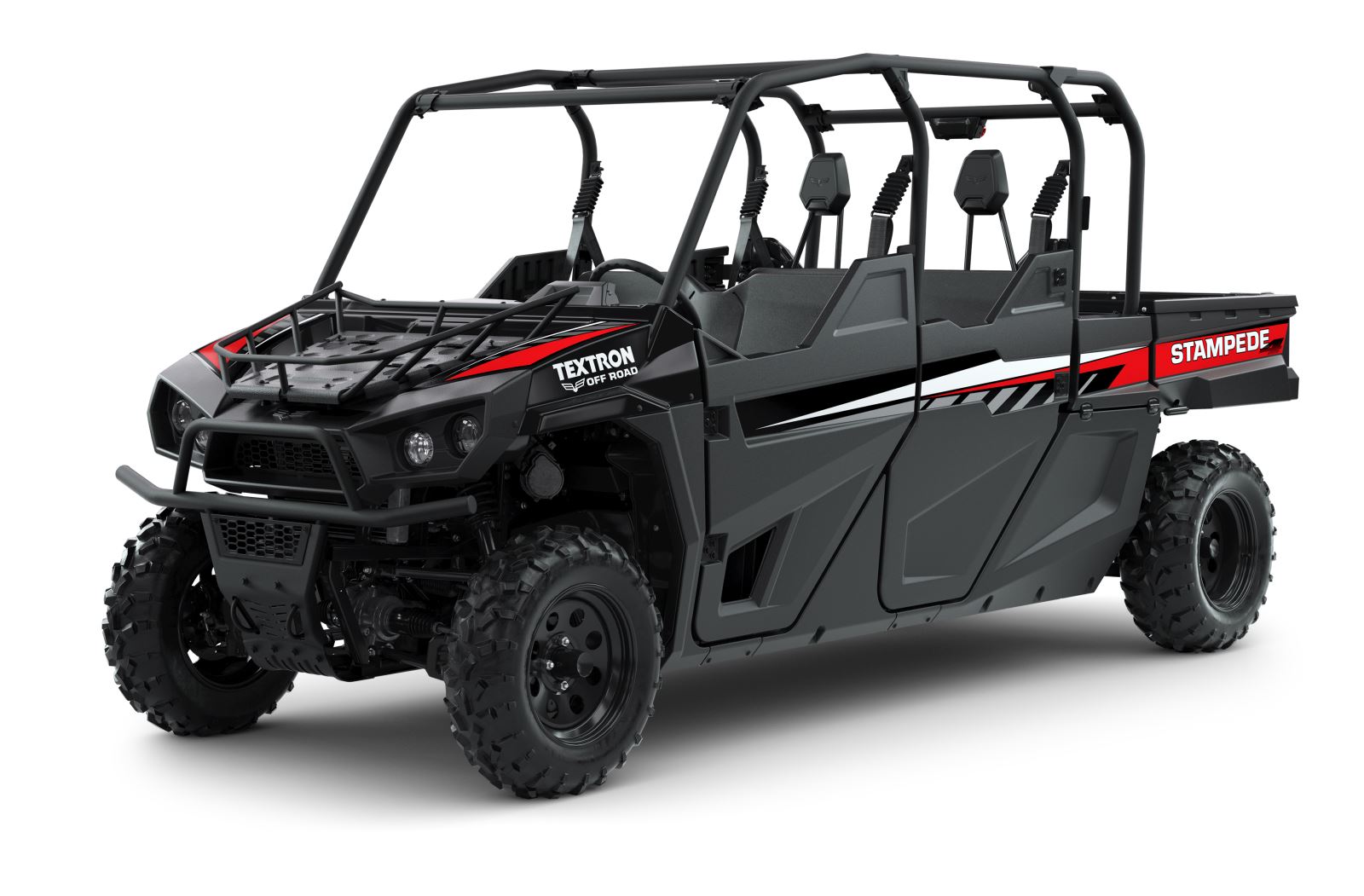

2019 Stampede 4
Key features
- 80 hp EFI Engine
- 59 ft-lb of Torque
- Class-Leading 30 cu-ft of Storage with Extended Cab and Underseat Storage
- On-Demand AWD
- Standard Electronic Power Steering
- Standard Full Doors
- Four-Wheel Double A-arm Suspension
- Front & Rear Sway Bars
- 2,000-lb of Towing, 600-lb Capacity Tilt Bed, and a 170-lb Capacity Extended Cab
- Fast-N-Latch Bed Storage System
- Standard Hood Rack
Engine & Drivetrain
Engine Type Liquid-Cooled 4-Stroke, Twin Cylinder, SOHC, Gas Engine
Horsepower 80 hp
Displacement 846cc
Drivetrain CVT
Drive System On-Demand AWD
Fuel System Electronic Fuel Injection
Gear Selection Dash-Mounted Cable Shifter (H, L, N, R, P)
Front Differential Automatic Locking Overrunning Clutch
Rear Differential Selectable Locking
Performance
Payload Capacity 1,500 lbs. (680 kg)
Bed Load Capacity 600 lbs. (272 kg)
Towing Capacity 2,000 lbs. (907 kg)
Steering & Suspension
Steering Electronic Power Steering, Tilt Steering Wheel
Front Suspension Double A-arm with 9.5 inches (24.1 cm) travel, performance shocks
Rear Suspension Double A-arm with 10.5 inches (26.7 cm) travel, performance shocks
Brake System 4-Wheel Hydraulic Disc Brakes with 9-inch (22.9 cm) Rotors, Dual Piston Calipers
Parking Brake Park in Transmission
Front Tires 26 x 9-14, Kenda Off-Road Performance Tires
Rear Tires 26 x 11-14, Kenda Off-Road Performance Tires
Wheels Black Steel
Dimensions
Overall Length 158 inches (401 cm)
Overall Width 58 inches (147 cm)
Overall Height 75 inches (190.5 cm) (w/o Roof) | 76.5 inches (194.0 cm) (w/ Roof)
Overall Weight 1,920 lbs. (870.9 kg) (Dry)
Wheelbase 117.2 inches (298 cm)
Ground Clearance 11.25 inches (28.5 cm)
Storage Capacity 30 cu-ft
Fuel Capacity 9.5 gallons (36 L)
Bed Dimensions 32x49x11.7 inches (81.3 x 124.5 x 29.7 cm)
Hitch Standard/2-inch (5 cm) Receiver
Color Options & Frame
Standard Colors Black with Fire Red
Features
Instrumentation Adjustable Backlit LCD, 12V DC Outlet, USB
Headlights Low/High Beam
Seating Contoured Bench Seat
Storage Components Cargo Dump Bed, Underseat Storage, Extended Cab Storage Space, Glove Box
Additional Features 3-Point Seat Belts, Seat Belt Rev Limiter, Standard Doors, Steel Tube ROPS, Front-Mounted Steel Brush Guard, Passenger Grab Handle, Headlights, Brake Light, Customizable Speed Controller
Standard Accessories Hood Rack
Warranty 12 Months
